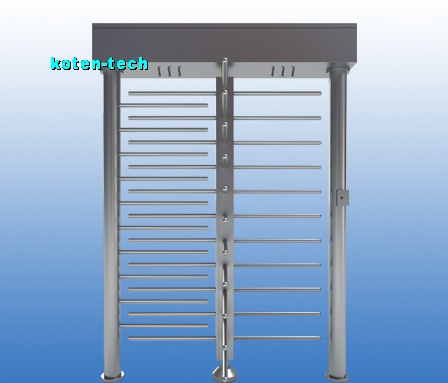

Electromagnet Lock Full Height Turnstile
|Product name : Electromagnet Lock Full Height Turnstile
|Item : KT506
◆ Full Height Turnstile developed by Koten is available for any area which needs a high level of security without persons to monitor.
◆ The machine is well designed to be rustproof, durable and able to resist external destroy.
◆ Full Height Turnstile is normally designed to be Semi-Automatic Type，Mechanical type.
◆ Full Height Turnstile with 3-arm obstacle: the center rotor rotates 120 degrees per time, and it offers a comfortable space for users.
◆ Full Height Turnstile with 4-arm obstacle: the center rotor rotates 90 degrees per time, and it offers a higher level of security but less
space for users.
◆ The center rotor will be set free (default) or locked (optional) automatically when the power is off.
◆ Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be
remote-controlled whether the power is on or not.
◆ The structure has no motor.
◆ The center rotor can only rotate by single direction, but the direction can be changed easily inside.
◆ The structure has no electric devices.
◆ Both directions can be set as controlled mode or free mode.
◆ NO mode & NC mode can be switched over by users easily & freely.
◆ Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
◆ With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
◆ Each machine can be set by Physical Address (Optional).
◆ Framework: 304 (Standard) / 316 grade stainless steel
◆ Thickness of Ply: 1.5mm (Standard) / 2.0mm
◆ Finishing: Brushed surface (Standard) / Polishing surface
◆ Arm Length: 610mm(Standard) 500~700mm
◆ Arm Diameter: 38mm (Standard) / 48mm
◆ Max Tolerance of Arm: 30kg
◆ Driving Force of Arm: 3kg
◆ Power Voltage: AC220V 50Hz(Standard) / AC85~240V 50or60Hz
◆ Operation Voltage: DC24V
◆ Operation Current: 3A / 5A (Max)
◆ Driving Motor: Brush DC motor
◆ Communication Interface: RS485 / RS232;
◆ Control I/O: Relay Out / Level Input
◆ Transit Speed: 20~35 passage / minute
◆ Temperature: -20℃~60℃
◆ Work Environment: Indoor/ Outdoor (Shelter)
◆ Traffic-light Indication
