Tripod Turnstile

Tripod Turnstile

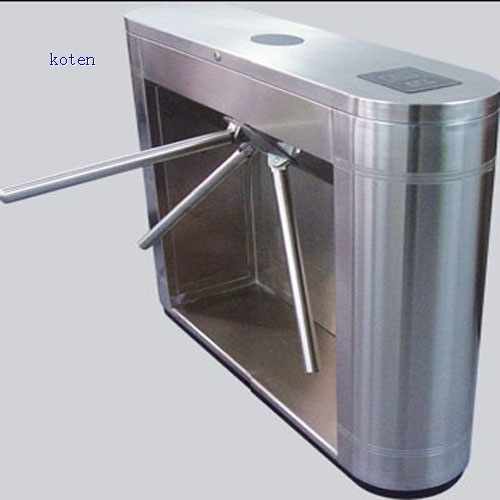

Product name : Tripod Turnstile
Item : KT-S210
Details :
Semi-Automatic Type:
Auto-drop-arm function: the middle arm can drop down automatically (default) (or free passing) when the power is off.
Emergency-escape function: the middle arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
◆ The structure has no motor.

Function Specifications:
◆ Both directions can be set as controlled mode or free mode.
◆ NO mode & NC mode can be switched over by users easily & freely.
Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by the small key on the main control board).
◆ With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
◆ Each machine can be set by Physical Address (Optional).

Framework Specifications:
Framework: 304 (Standard) / 316 grade stainless steel
Size: 1200×280×980(mm)
Thickness of Ply: 1.5mm (Standard) / 2.0mm
Finishing: Brushed surface (Standard) / Polishing surface
Arm Length: 510mm
Arm Diameter: 38mm (Standard) / 48mm
Max Tolerance of Arm: 30kg
Driving Force of Arm: 3kg





Electric Specifications:
Power Voltage: AC220V 50Hz(Standard) / AC85~240V    50or60Hz
Operation Voltage: DC24V
Operation Current: 3A / 5A (Max)
Driving Motor: Brushless DC motor
Communication Interface: RS485
Control I/O: Relay Out (6CH) / Level Input (4CH)
Transit Speed: 20~35 passage / minute
Temperature: -20~60
Work Environment: Indoor / Outdoor (Shelter)
Traffic-light Indication


Customized Features:
Alternative Materials, Finishes and Custom Design
Access Control System Integration
Ticket System Integration
Camera System Integration
Thermostat System Integration
Remote-Controlled Button
Usage Counters
Waterproof and Dustproof Design: IP55 for mechanical module, IP65 for electric module


Applications:
Office building
Government
School
Hotel
Super market
Bank
Park
