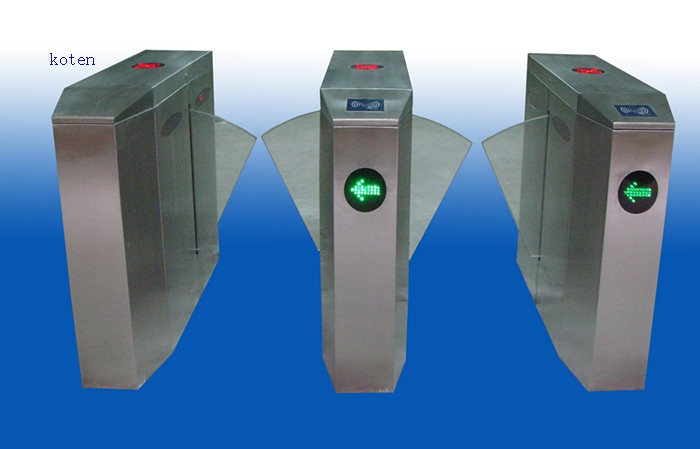

Wing Barrier Gate

Summary:

Flap turnstile(Flap barrier) is a high-tech product aimed at the pedestrian access intelligent management, which is a upgraded product based on intelligent tri-turnstile, swing barrier. This product is well-processed with full functions, high grade, and mainly used in high grade places such as top-grade community, intelligent mansion, hotel, subway, port, club etc. The product integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve acess intelligentized control and management.



Technical specification:

Materials:       Casework:    304 grade stainless steel or Painted Steel

                Flap door: Organic glass, or Resin, or PVC

Power supply:    220V, or 240V, or 110V    50Hz, or 60Hz

Motor:          DC24V with brush

Input interface:   Dry contact signal or +12V electric level signal or DC12V pulse signal with width of more than 100ms, Driving current: > 10mA

Normal life-span:       3million times

Communication interface:    RS485, standard distance less than 1200metres

Transit speed:     30-40 persons/min

Time for opening or closeing:   1 seconds

Starting time after power is on:   3 secconds

Automatic reset time after fault:   10seconds

Working environment:    Indoor, outdoor( with a tent over)

Temperature:     -10℃—— 50℃

Relative humidity:    ≤90%  no condensation



Function features:

※ With function of self-examine and alarm, it is convenient for maintenance and use.

※ Being able to program running status by the three small buttons in the main board

※ Flap door will stop move when it is being blocked, which prevent pedestrians from being

nipped and from hurt.

※ Light and sound alarm is generated when the illegal invasion and the tail followed.

※ Arms are automatically locked untill opening signal is received.
※ Arms synchronization (adjustable)
※ Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through

the channel in the pre-set time after the opening. The passing time is adjustable.(default time is

10sec.)

※     Automatically open the gate when power off and automatically close when power on.

※     Several readers devices are attachable.(IC, ID access control, fingerprint access control,

barcode ticket access control, facial identification access control, time attendance machine ect.)
※ One direction or bi-direction are optional.

※     It can be directly controlled and managed by remote control.



Extendable functions:

※     Counter(optional)

※     The length of the housing (length 1.2m, 1.4m, or 1.6m are optional )

※     The material of flap arm (organic glass, resin, PVC etc. optional)

※     The colour of the flap arm (red, blue, yellow, colourless, etc.)



Main structure and configuration:

1.       Single mechanism type(One housing with one flap mechanism in it):

1 standard housing

1 flap arm

1 main control board

1 transformer

1 electromotor

1 set of core and transmission part

Infrared sensor(Hall switch, the quantity is different according to different model)

1 annunciators

1 direction indicator
2. Double mechanism type(One housing with two flap mechanisms it it):

1 standard housing

2 flap arms

2 main control boards

2 transformers

2 electromotors

2 sets of core and transmission parts

Infrared sensor(Hall switch, the quantity is different according to different model)

2 annunciators

2 direction indicators
